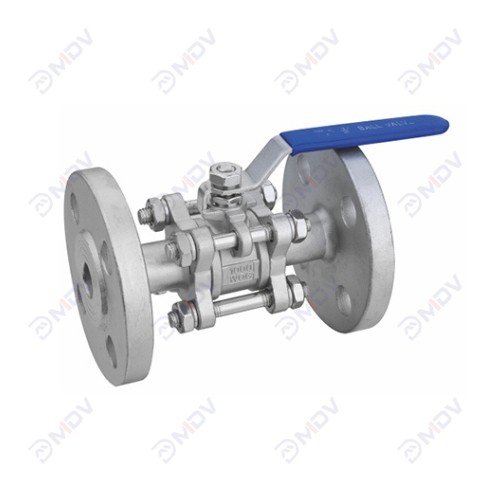

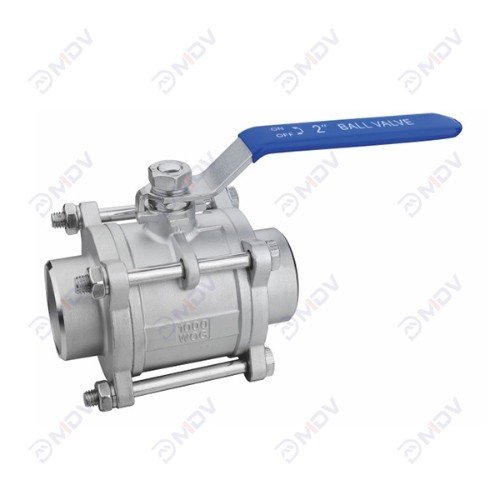

3 Piece Ball Valve Collection
- Easy disassembly
- Replaceable seats
- Full port flow
- Sanitary design
- Threaded/flanged ends
- Fire-safe API607
- Anti-static feature
- Low leakage rate
- High-pressure rating
- Cost-efficient maintenance
Main functions and technical parameters of the product
MeiDe Valve produces 3 piece ball valve Designed for easy maintenance, this 3-piece ball valve features a split-body construction allowing in-line repair without pipe removal. Key benefits:
- Full-Port Flow: Cv≥95 with ASME B16.34 Class 150-600 pressure ratings
- Fire-Safe API 607: Post-650°C fire test leakage <100ppm
- Double Block & Bleed: Dual ISO 5208 Class VI seals enable safe isolation
- Anti-Static ISO 17292: Spring-loaded ball/stem grounding
- Material Flexibility: 316SS (-196°C~200°C)/Alloy 20/Carbon steel options
- Certified to NACE MR0175 for sour service, ideal for chemical injection, batch processing, and frequent maintenance systems.
| Size Range | 2″-48″(50mm-1200mm) | Body Material | CarbonSteel,StainlessSteel,Copper Alloy,alloy steel,etc |
| Temperature Range | -196 to 425Â degree | Stem Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 2500,PN 2.5 to PN420,10K-20K | Shutoff Rating | Zero Leakage |
| TrimMaterial | CarbonSteel,StainlessSteel,CopperAlloy,alloy steel,etc | End connection | FLNG( RF, RTJ),SW,BW, NPT |
| Design Standard | API6D,API608,EN1983,ISO17292,GOST | Flange Standard | ASME B16.5, EN 1092-1,GOST 33259 |
| Testing Standard | API598,EN12266-1,ISO 5208 | Certifications | CE,EAC,API6D,SIL3,ISO 19001,API 607,API 6FA |
| Face to Face | ISO5752,API6D,ASMEB16.10,EN558-1 | Fugitive Emissions | ISO 158484-1 |

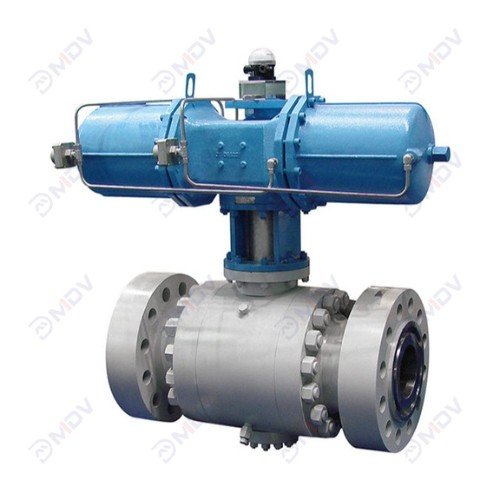

| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | PTFE,RPTFE,PCTFE,NYLON,DEVLON,PEEK,etc(SoftSeat)coating STL,TCC,NI55,NI60,etc(Metal Seat) |
