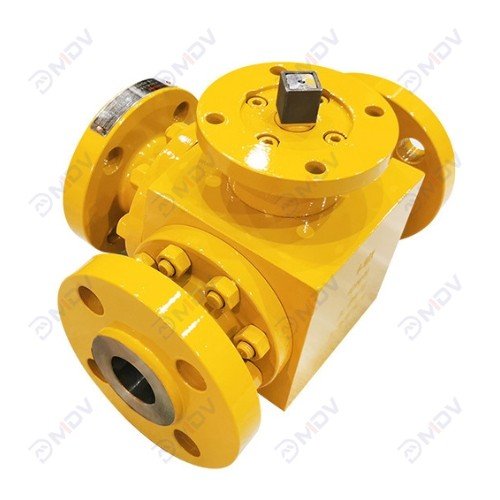

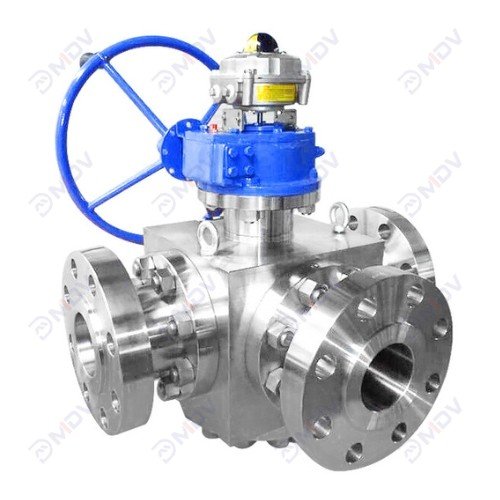

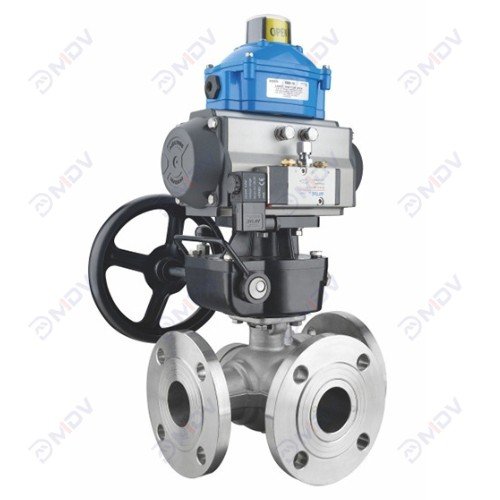

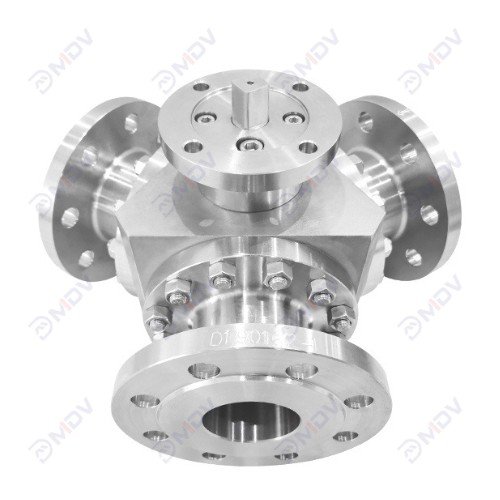

3 Way Ball Valve Collection
- T-port/L-port options
- Multi-directional flow
- Compact design
- Leak-free performance
- High cycle life
- Low torque handle
- Stainless steel stem
- Easy port switching
- Corrosion resistance
- ANSI flange ends
Main functions and technical parameters of the product
MeiDe Valve produces 3 Way Ball Valves Engineered for multi-directional flow control, this 3-way ball valve offers L/T/Y-port configurations for mixing, diverting, or bypassing fluids. Key advantages:
- Zero Cross-Contamination: Chromium-plated ball (HRC 50-55) with ISO 5211 actuator compatibility
- Bidirectional Sealing: ASME B16.34 Class 150-600, leakage ≤100ppm (ISO 5208 Class VI)
- Compact Design: 30% lighter than conventional valves, with 360° port alignment marks
- Fire-Safe API 607: 650°C flame resistance, post-fire leakage <0.1 bubble/min
- Material Versatility: 316SS/CF8M body (-196°C~250°C), WCB/CF8 options available
- Ideal for chemical dosing, HVAC, and process skids with NACE MR0175 sour service compliance.
| Size Range | 2″-48″(50mm-1200mm) | Body Material | CarbonSteel,StainlessSteel,Copper Alloy,alloy steel,etc |
| Temperature Range | -196 to 425Â degree | Stem Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 2500,PN 2.5 to PN420,10K-20K | Shutoff Rating | Zero Leakage |
| TrimMaterial | CarbonSteel,StainlessSteel,CopperAlloy,alloy steel,etc | End connection | FLNG( RF, RTJ), BW, SW, NPT |
| Design Standard | API6D,API608,EN1983,ISO17292,GOST | Flange Standard | ASME B16.5, EN 1092-1,GOST 33259 |
| Testing Standard | API598,EN12266-1,ISO 5208 | Certifications | API6D,CE,EAC,SIL3,ISO 19001,API 607,API 6FA |
| Face to Face | API6D,ISO5752,ASMEB16.10,EN558-1 | Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | RPTFE,PTFE,PCTFE,NYLON,DEVLON,PEEK,etc(SoftSeat)coating STL,TCC,NI55,NI60,etc(Metal Seat) |
