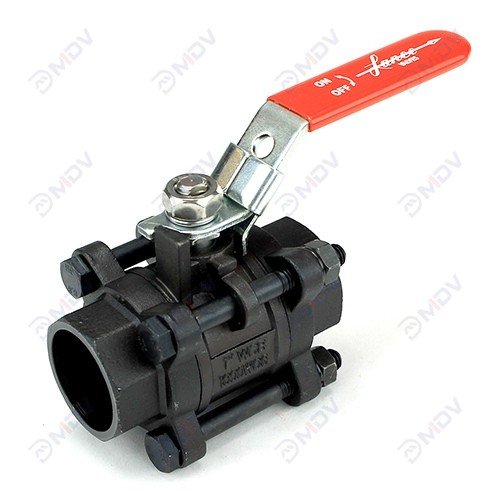

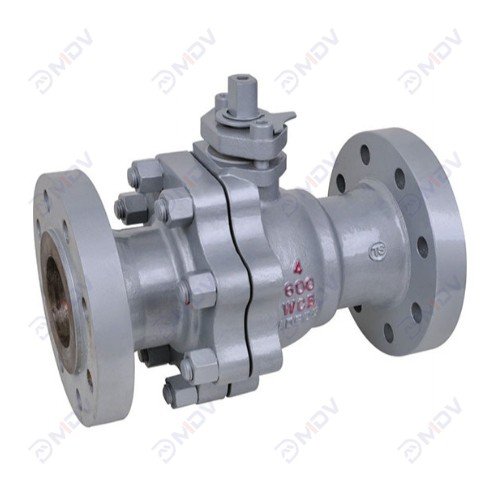

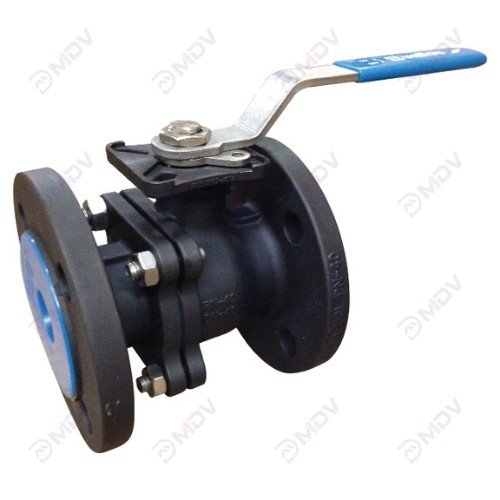

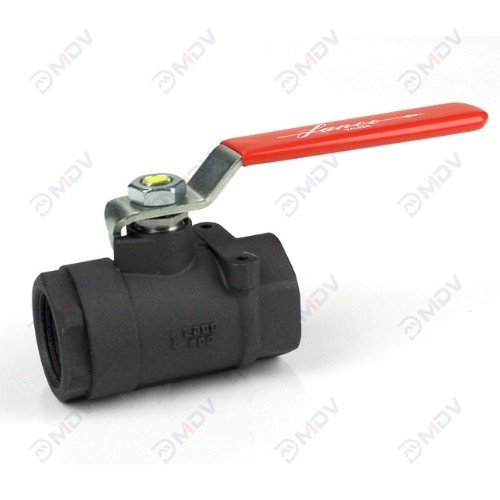

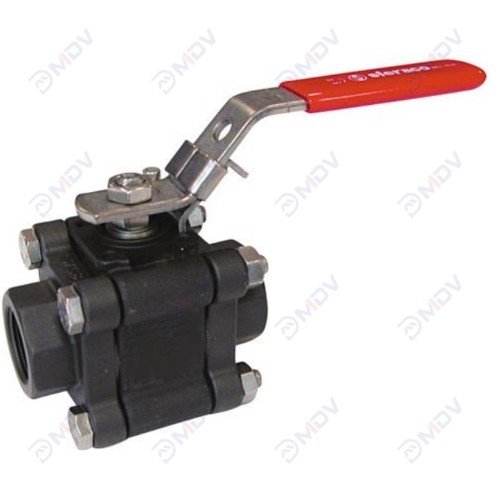

Carbon Steel Ball Valve Collection
- Cost-effective CS body
- High-pressure rating
- Anti-rust coating
- Fire-safe API607
- Smooth operation
- Minimal maintenance
- Bidirectional flow
- ISO mounting standard
- Durable PTFE seats
- Industrial-grade durability
Main functions and technical parameters of the product
MeiDe Valve produces carbon steel ball valve Built with ASTM A216 WCB and A105 carbon steel, this industrial-grade ball valve delivers 6000 PSI (ASME B16.34 Class 2500) reliability for harsh hydrocarbon services. Key highlights:
- API 598 Certified: ≤100ppm leakage (ISO 5208 Class VI/V)
- Fire-Safe API 607: Post-650°C fire test sealing maintained
- Anti-Static Design: Spring-loaded ball/stem grounding per ISO 17292
- Full/Reduced Bore: Cv 90+ for minimal pressure loss
- Extended Temp Range: -29°C~425°C standard, -46°C~550°C custom
- Equipped with blowout-proof stems, ISO 5211 actuator mounts, and NACE MR0175 compliance for sour gas. Ideal for refineries, steam lines, and crude oil pipelines.
| Size Range | 2″-48″(50mm-1200mm) | Body Material | CarbonSteel |
| Temperature Range | -196 to 425Â degree | Stem Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 2500,PN 2.5 to PN420,10K-20K | Shutoff Rating | Zero Leakage |
| TrimMaterial | CarbonSteel | End connection | FLNG( RF, RTJ), BW, SW, NPT |
| Design Standard | API608,API6D,EN1983,ISO17292,GOST | Flange Standard | ASME B16.5, EN 1092-1,GOST 33259 |
| Testing Standard | API598,EN12266-1,ISO 5208 | Certifications | API6D,CE,EAC,SIL3,ISO 19001,API 607,API 6FA |
| Face to Face | API6D,ISO5752,ASMEB16.10,EN558-1 | Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | PTFE,RPTFE,PCTFE,NYLON,DEVLON,PEEK,etc(SoftSeat)coating STL,TCC,NI55,NI60,etc(Metal Seat) |
