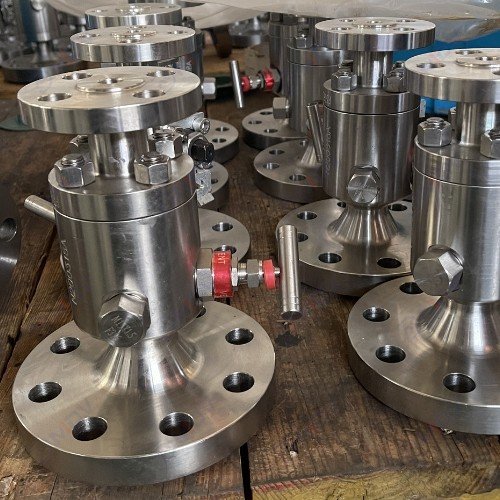

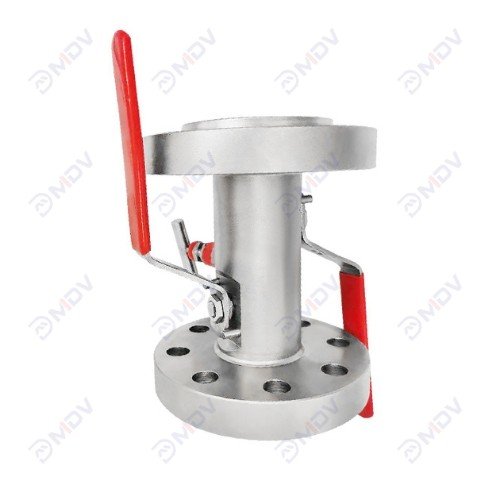

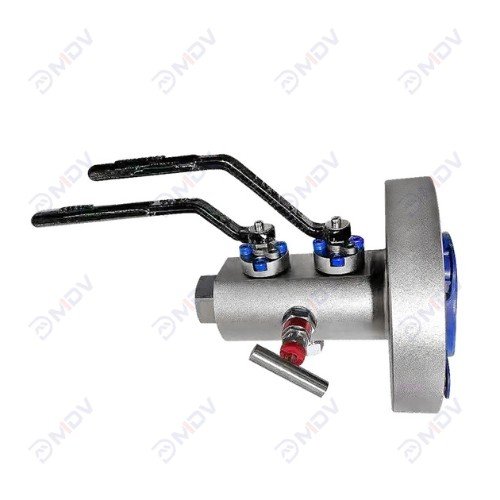

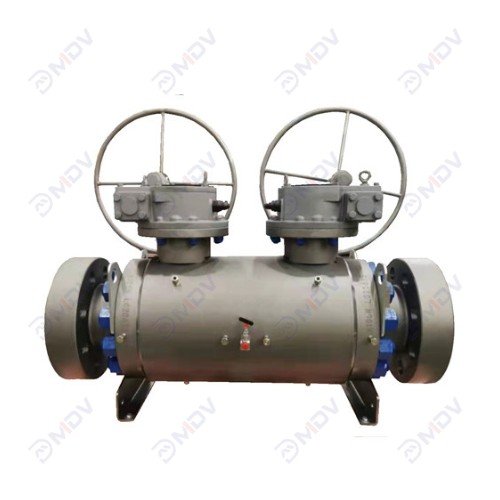

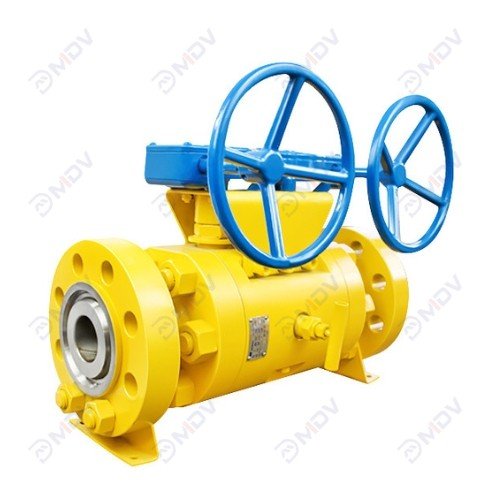

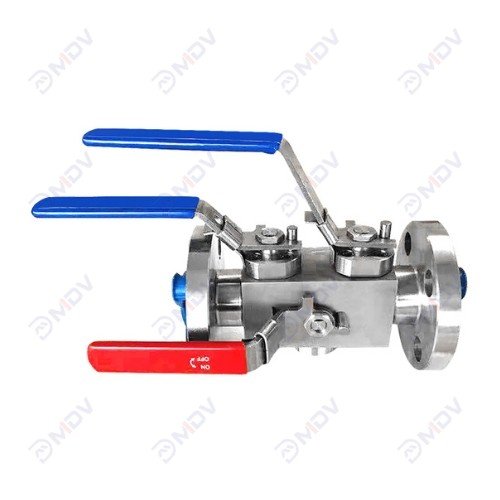

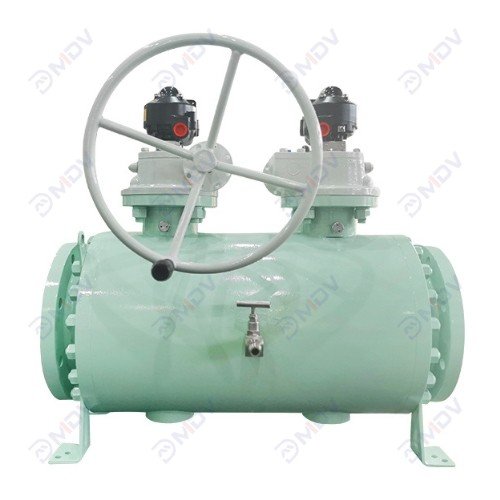

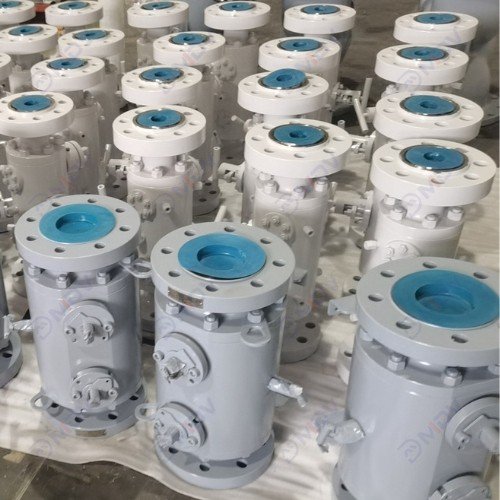

Double Block and Bleed Valve Collection

  • Dual isolation seals
  • Intermediate bleed port
  • API6D compliant
  • Zero leakage
  • Compact inline design
  • Fire-safe construction
  • High-pressure capability
  • Visual bleed verification
  • Reduced maintenance
  • Versatile applications
Send Inquiry Now

Main functions and technical parameters of the product

MeiDe Valve produces double block and bleed valve This compact DBB valve replaces dual valves with a single-unit solution, reducing 40% space/weight. Certified to API 607 (650°C fire-safe) and NACE MR0175 (H₂S resistance), it delivers:

  • Dual Isolation + Bleed: Seals upstream/downstream while venting mid-cavity via 1.33x pressure auto-release
  • ISO 15848-1 Fugitive Emission: <100ppm leakage with API 622 live-loaded packing
  • 3 Configurations: Short (35% length reduction), long (20% maintenance access), or 3-piece (in-line repair)
  • ASME B16.34 Lever Locks: 250Nm torque security
  • Full Bore Design: Cv≥95 for minimal flow restriction
  • Ideal for offshore platforms, chemical skids, and sour gas pipelines.
Size Range 2″-48″(50mm-1200mm) Body Material CarbonSteel,StainlessSteel,Copper Alloy,alloy steel,etc
Temperature Range -196 to 425 degree Stem Material Staniless Steel
Pressure Ratings Class 150 to Class 2500,PN 2.5 to PN420,10K-20K Shutoff Rating Zero Leakage
TrimMaterial CarbonSteel,StainlessSteel,CopperAlloy,alloy steel,etc End connection FLNG( RF, RTJ), BW, SW, NPT
Design Standard API6D,API608,EN1983,ISO17292,GOST Flange Standard ASME B16.5, EN 1092-1,GOST 33259
Testing Standard API598,EN12266-1,ISO 5208 Certifications API6D,CE,EAC,SIL3,ISO 19001,API 607,API 6FA
Face to Face API6D,ISO5752,ASMEB16.10,EN558-1 Fugitive Emissions ISO 158484-1
Operation Worm Gear,Wench, Electric, Pneumatic,etc Seat Material RPTFE,PTFE,PCTFE,NYLON,DEVLON,PEEK,etc(SoftSeat)coating STL,TCC,NI55,NI60,etc(Metal Seat)
