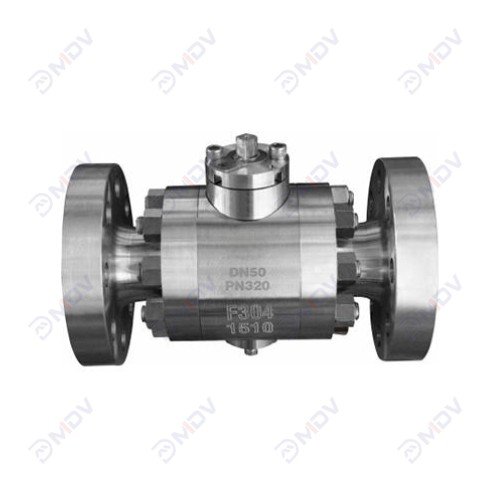

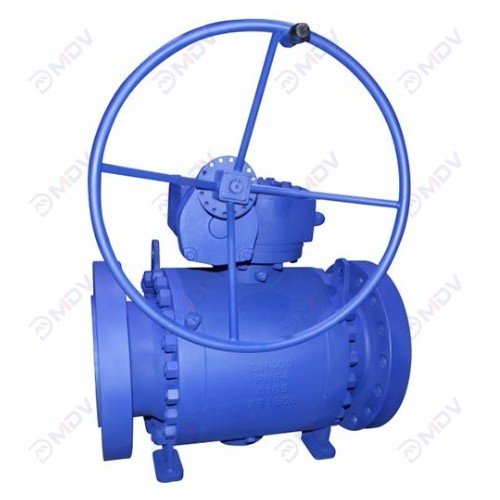

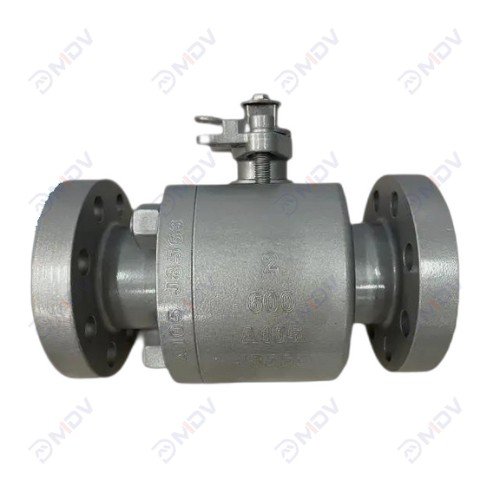

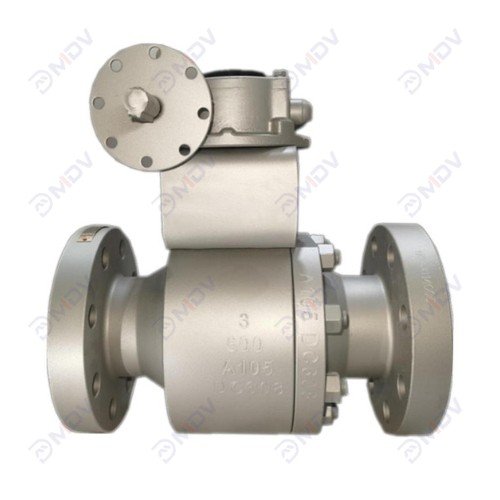

Forged Steel Ball Valve Collection
- High-strength forged body
- API6D specification
- Full bore flow
- Fire-safe tested
- Anti-blowout stem
- Low-pressure drop
- Double-seal design
- Threaded/end connections
- Rugged construction
- Wide pressure range
Main functions and technical parameters of the product
MeiDe Valve produces forged steel ball valves ensure zero leakage and robust performance in extreme conditions. Key benefits:
High-Pressure Resilience: ASTM A105/A182 F316L bodies withstand ASME 150~2500LB (42MPa) and -196°C~425°C.
- Zero Leakage: Double Block & Bleed (DBB) design with Stellite 6-coated seats (≤2ppm per ISO 15848-1).
- Corrosion Resistance: NACE MR0175-compliant trim (Inconel 625/Alloy C276) for Hâ‚‚S/sour gas.
- Fire-Safe: API 607/6FA certified for 30min@800°C hydrocarbon fires.
- Versatile Operation: ISO 5211 mounts for manual/pneumatic/electric actuators (50,000+ cycles).
| Size Range | 2″-48″(50mm-1200mm) | Body Material | StainlessSteel,CarbonSteel,Copper Alloy,alloy steel,etc |
| Temperature Range | -196 to 425Â degree | Stem Material | Staniless Steel |
| Pressure Ratings | PN 2.5 to PN420,Class 150 to Class 2500,10K-20K | Shutoff Rating | Zero Leakage |
| TrimMaterial | CarbonSteel,StainlessSteel,CopperAlloy,alloy steel,etc | End connection | FLNG( RF, RTJ), BW, SW, NPT |
| Design Standard | API6D,EN1983,API608,ISO17292,GOST | Flange Standard | EN 1092-1,ASME B16.5,GOST 33259 |
| Testing Standard | API598,EN12266-1,ISO 5208 | Certifications | CE,EAC,SIL3,API6D,ISO 19001,API 607,API 6FA |
| Face to Face | API6D,ISO5752,ASMEB16.10,EN558-1 | Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | PTFE,RPTFE,PCTFE,NYLON,DEVLON,PEEK,etc(SoftSeat)coating STL,TCC,NI55,NI60,etc(Metal Seat) |
