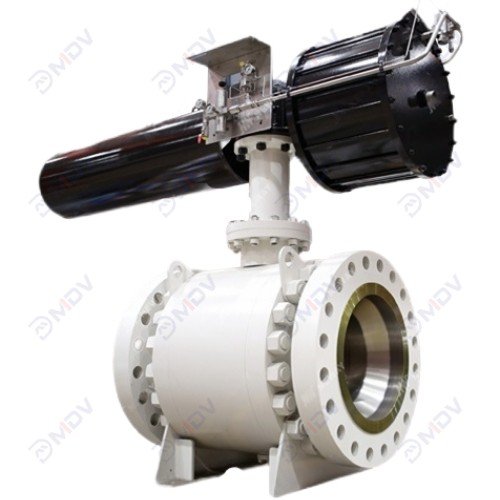

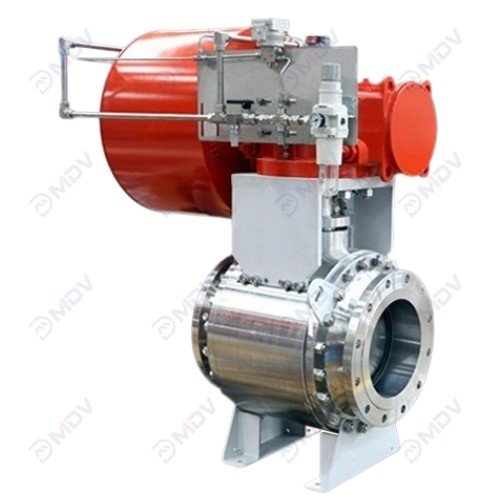

Side Entry Ball Valve Collection
- Modular assembly
- Easy maintenance
- Full bore design
- Fire-safe API6FA
- Anti-blowout stem
- Double-sealing seats
- High-temperature range
- Low-pressure drop
- Threaded/flanged ends
- ISO5211 actuator mount
Main functions and technical parameters of the product
MeiDe Valve produces Side Entry Ball Valve Engineered for harsh environments, this API 607-certified side entry ball valve features PMSS dual-seat technology with PTFE/Stellite 6 seals (-50°C~550°C). Key advantages:
- NACE MR0175 Compliance: Hâ‚‚S-resistant 304SS overlay on carbon steel body
- Low Torque Design: 40% reduction via dual-piston seats & anti-galling surfaces
- Auto Cavity Relief: Self-venting at 1.33x rated pressure (API 6D Annex F)
- API 622 Live Loading: ≤100ppm fugitive emissions with Belleville spring packing
- Lever Locks: ASME B16.34-compliant 220Nm torque security
- Certified to ISO 15848-1, ideal for refineries, sour gas pipelines, and high-PT systems.
| Size Range | 2″-48″(50mm-1200mm) | Body Material | CarbonSteel,StainlessSteel,Copper Alloy,alloy steel,etc |
| Temperature Range | -196 to 425Â degree | Stem Material | Staniless Steel |
| Pressure Ratings | PN 2.5 to PN420,Class 150 to Class 2500,10K-20K | Shutoff Rating | Zero Leakage |
| TrimMaterial | CarbonSteel,StainlessSteel,CopperAlloy,alloy steel,etc | End connection | FLNG( RF, RTJ), BW, SW, NPT |
| Design Standard | API6D,EN1983,API608,ISO17292,GOST | Flange Standard | ASME B16.5, EN 1092-1,GOST 33259 |
| Testing Standard | API598,EN12266-1,ISO 5208 | Certifications | CE,EAC,SIL3,API6D,ISO 19001,API 607,API 6FA |
| Face to Face | API6D,ISO5752,ASMEB16.10,EN558-1 | Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | PTFE,RPTFE,PCTFE,NYLON,DEVLON,PEEK,etc(SoftSeat)coating STL,TCC,NI55,NI60,etc(Metal Seat) |
