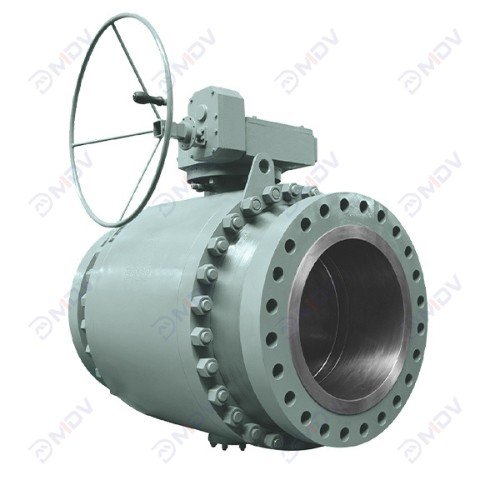

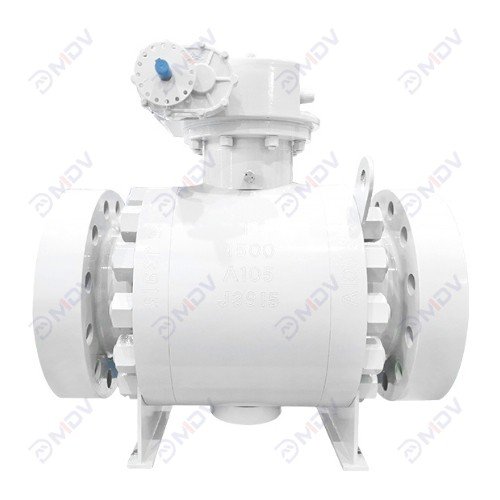

Split Body Ball Valve Collection
- Quick disassembly
- Top-entry maintenance
- Full port flow
- Fire-safe design
- Anti-static device
- Blowout-proof stem
- Low torque operation
- Durable metal seats
- Bidirectional sealing
- API6D compliance
MeiDe Valve produces Split Body Ball Valve This API 607-certified split body valve combines PMSS dual-seat technology (PTFE primary + Stellite 6 secondary seals) with NACE MR0175 compliance for harsh environments. Key benefits:
- Low Torque Operation: Dual-piston seat design reduces torque by 35% vs standard valves
- Anti-Galling Protection: Laser-clad 304SS on carbon steel contact surfaces (ASTM G48 tested)
- Auto Cavity Relief: Self-venting at 1.33x rated pressure (API 6D Annex F)
- API 622 Live Loading: ≤50ppm fugitive emissions via Belleville spring packing
- Modular Maintenance: Split-body design enables in-line repair without pipe disassembly
- Certified to ISO 15848-1 Class BH, ideal for refineries, sour gas pipelines, and high-pressure steam systems.
| Size Range | 2″-48″(50mm-1200mm) | Body Material | CarbonSteel,StainlessSteel,Copper Alloy,alloy steel,etc |
| Temperature Range | -196 to 425Â degree | Stem Material | Staniless Steel |
| Pressure Ratings | PN 2.5 to PN420,Class 150 to Class 2500,10K-20K | Shutoff Rating | Zero Leakage |
| TrimMaterial | CarbonSteel,StainlessSteel,CopperAlloy,alloy steel,etc | End connection | FLNG( RF, RTJ), BW, SW, NPT |
| Design Standard | API608,API6D,EN1983,ISO17292,GOST | Flange Standard | ASME B16.5, EN 1092-1,GOST 33259 |
| Testing Standard | API598,EN12266-1,ISO 5208 | Certifications | API6D,CE,EAC,SIL3,ISO 19001,API 607,API 6FA |
| Face to Face | ISO5752,API6D,ASMEB16.10,EN558-1 | Fugitive Emissions | ISO 158484-1 |
| Operation | Worm Gear,Wench, Electric, Pneumatic,etc | Seat Material | PTFE,RPTFE,PCTFE,NYLON,DEVLON,PEEK,etc(SoftSeat)coating STL,TCC,NI55,NI60,etc(Metal Seat) |
