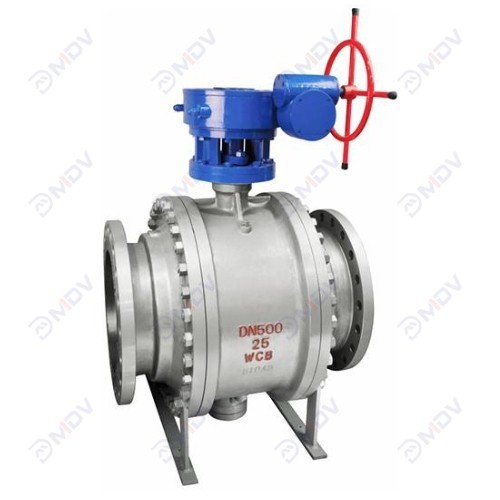

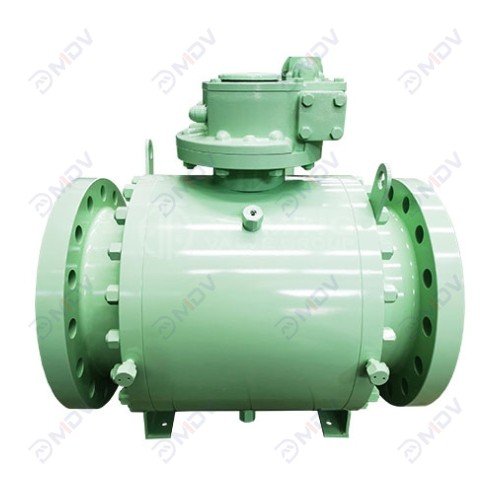

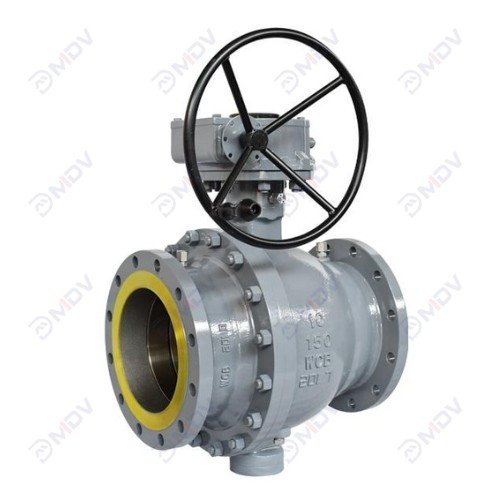

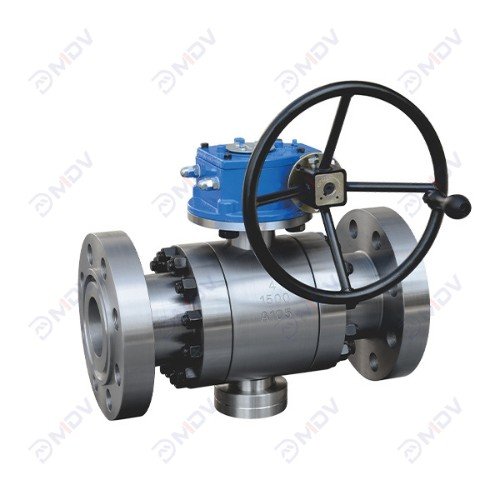

Trunnion Ball Valve Collection
- Double-piston effect seats
- Stem anti-blowout design
- Low operating torque
- Blowout-proof stem
- ISO standard compliance
- Cavity pressure relief
- Fire-safe API607 certified
- Bidirectional sealing
- Anti-static device
- Extended service life
Main functions and technical parameters of the product
MeiDe Valve produces trunnion-mounted ball valve delivers high-pressure reliability with dual-block-and-bleed (DBB) functionality for critical pipeline applications. Its anchored ball design (supported by upper/lower shafts) ensures stable operation up to ASME 2500LB. Key features:
- Double Piston Effect Seats: PMSS dual-seal (PTFE primary + Stellite backup) guarantees zero leakage, certified to API 6D/ISO 17292.
- Anti-Blowout Stem: Integrated with API 622 live-loaded packing for ≤50ppm fugitive emissions.
- Cavity Pressure Relief: Auto-venting activates at 1.33x MAWP to prevent seal damage.
- NACE MR0175 Compliance: 316L stainless steel trim resists Hâ‚‚S corrosion in sour gas.
- Fire-Safe API 607: Secondary metal seal engages post-fire, maintaining ANSI Class IV sealing.
- Ideal for oil/gas transmission, LNG plants, and refinery isolation with -46°C~250°C operability.
| Size Range | 2″-48″(50mm-1200mm) | Body Material | StainlessSteel,CarbonSteel,Copper Alloy,alloy steel,etc |
| Temperature Range | -196 to 425Â degree | Stem Material | Staniless Steel |
| Pressure Ratings | PN 2.5 to PN420,Class 150 to Class 2500,10K-20K | Shutoff Rating | Zero Leakage |
| TrimMaterial | CarbonSteel,StainlessSteel,CopperAlloy,alloy steel,etc | End connection | FLNG( RF, RTJ), BW, SW, NPT |
| Design Standard | API6D,EN1983,API608,ISO17292,GOST | Flange Standard | EN 1092-1,ASME B16.5,GOST 33259 |
| Testing Standard | API598,EN12266-1,ISO 5208 | Certifications | CE,EAC,SIL3,API6D,ISO 19001,API 607,API 6FA |
| Face to Face | API6D,ISO5752,ASMEB16.10,EN558-1 | Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | PTFE,RPTFE,PCTFE,NYLON,DEVLON,PEEK,etc(SoftSeat)coating STL,TCC,NI55,NI60,etc(Metal Seat) |
