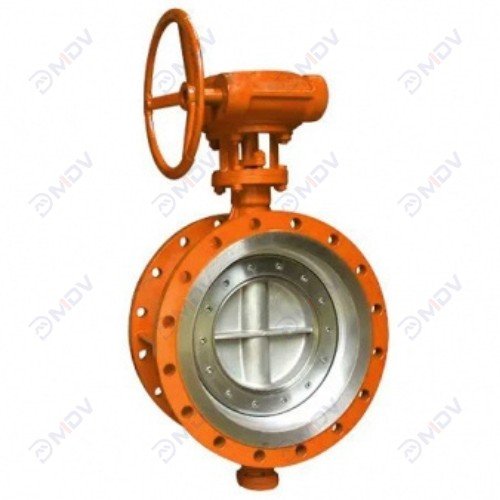

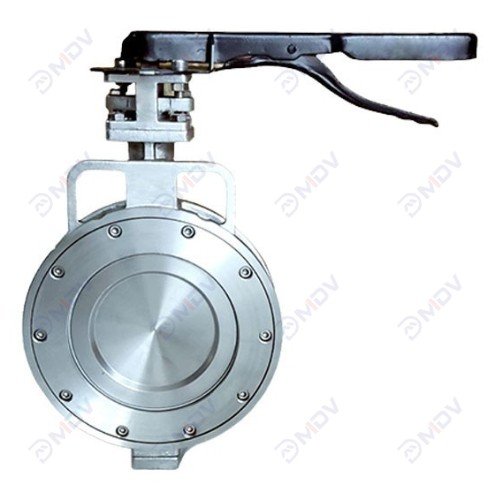

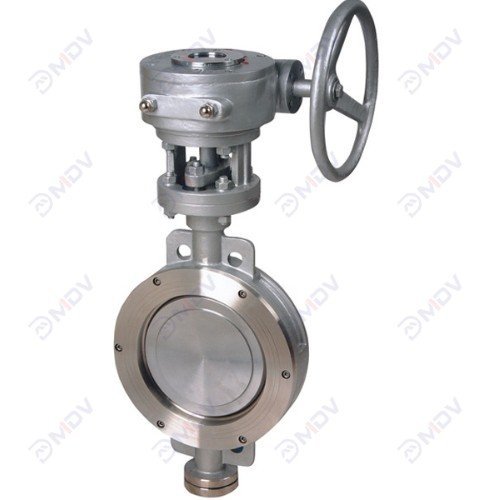

Double Offset Butterfly Valve Collection
- Reduced wear design
- Fire-safe API609
- High-performance sealing
- Low operating torque
- Metal seat options
- Bubble-tight shutoff
- Corrosion resistance
- ANSI flange standards
- Long cycle life
- Easy actuator mounting
Main functions and technical parameters of the product
MeiDe Valve produces double offset butterfly valve double eccentric design ensures zero leakage (ANSI Class VI ≤2ppm) in extreme conditions (-196°C~600°C / 2500#). Key advantages:
- Cam-Action Lift: Dual-offset disc/shaft alignment eliminates seal friction, enabling 100,000+ cycles.
- Abrasion Resistance: Tungsten carbide/Stellite 6 overlays withstand 60% solid slurries.
- API 607 Fire-Safe: Metal-to-metal seal activates post-1400°F fire exposure.
- Corrosion Defense: Super duplex SS bodies (NACE MR0175) combat Hâ‚‚S/chloride erosion.
- Self-Lubricating Bearings: Maintenance-free operation in particulate-laden flows. Ideal for oil & gas, mining, and LNG cryogenic systems.
| Size Range | 2″-40″(50mm-1000mm) | Body Material | Carbon Steel,Stainless Steel，Nickel Aluminum Bronze,alloy steel,etc |
| Temperature Range | -196 to 600 degree | Stem Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 900,PN 2.5 to PN150,10K-20K | Body Style | Flange |
| Design Standard | ASME B16.34, Â API 609 | Flange Standard | ASME B16.5,
EN 1092,GOST 33259 |
| Testing Standard | API598,EN12266-1,
ISO 5208 |
Certifications | CE,EAC,SIL3,API 607,API 609,
ISO 19001 |
| Face to Face | ISO 5752,API 609,
MSSÂ SP-68, ASME B16.10,EN558-1 |
Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | soft seat ,metal seat,
full metal seat |
| Shutoff Rating | Zero Leakage | Disc Materials | Carbon Steel,Stainless Steel,
Nickel Aluminum Bronze,alloy steel,etc |
