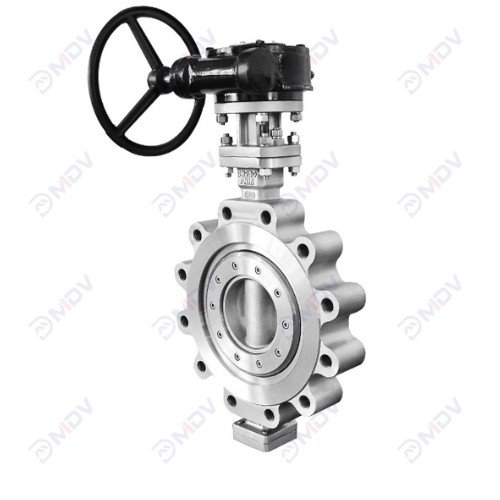

High Performance Butterfly Valve Collection
- Zero-leakage sealing
- High CV flow efficiency
- Fire-safe API607
- Low-pressure drop
- Eccentric disc design
- Corrosion-resistant body
- Lug/wafer type options
- ISO5211 actuator mount
- Bubble-tight shutoff
Main functions and technical parameters of the product
MeiDe Valve produces High Performance Butterfly Valve deliver bi-directional zero leakage for demanding oil & gas and marine applications. Key advantages:
- Multi-Material Seats: PTFE/RTFE/UHMWPE options for -40°C~200°C, sealing at 0~100% pressure (vacuum to 300LB).
- Corrosion Resistance: Carbon steel/316SS/duplex SS bodies (NACE MR0175) for Hâ‚‚S/chloride environments.
Safety & Durability:
- Blowout-resistant 17-4PH shaft (2x ANSI torque).
- Tangential disc pins (compression-loaded, no shear failure).
- Rocker gland bridge (90% fewer packing leaks).
- Fire-Safe Design: API 607 compliant for hydrocarbon fires (30min@800°C).
Efficient Installation:
- Integrally cast mounting pad (ISO 5211 actuator compatibility).
- Extended neck for 50mm insulation (cryogenic/LNG ready).
- Applications: Firewater, cargo handling, bilge/ballast systems, and high-pressure utilities (DN50–DN1000).
| Size Range | 2″-40″(50mm-1000mm) | Body Material | Carbon Steel,Stainless Steel，Nickel Aluminum Bronze,alloy steel,etc |
| Temperature Range | -196 to 600 degree | Stem Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 900,PN 2.5 to PN150,10K-20K | Body Style | Lug and Double
Flanged,Wafer,Butt Welded |
| Design Standard | ASME B16.34, Â API 609 | Flange Standard | ASME B16.5,
EN 1092,GOST 33259 |
| Testing Standard | API598,EN12266-1,
ISO 5208 |
Certifications | CE,EAC,SIL3,API 607,API 609,
ISO 19001 |
| Face to Face | ISO 5752,API 609,
MSSÂ SP-68, ASME B16.10,EN558-1 |
Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | soft seat ,metal seat,
full metal seat |
| Shutoff Rating | Zero Leakage | Disc Materials | Carbon Steel,Stainless Steel,
Nickel Aluminum Bronze,alloy steel,etc |
