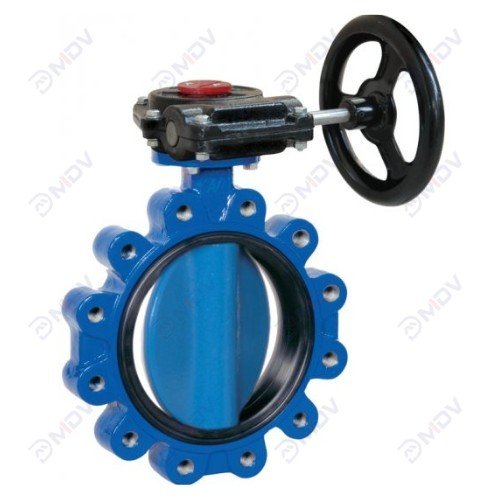

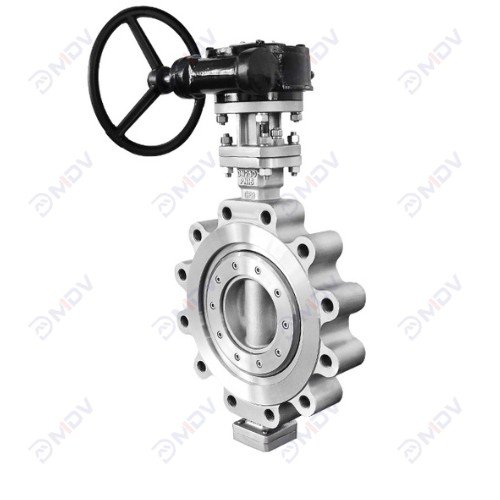

Lug Butterfly Valve Collection
- Dead-end service capable
- Dual flange connection
- Bubble-tight shutoff
- Fire-safe design
- High chemical resistance
- Low torque operation
- Compact construction
- ANSI class ratings
- Replaceable seats
- Long-term durability
Main functions and technical parameters of the product
MeiDe Valve producesLug Butterfly Valve lug-type design ensures secure end-of-line isolation with threaded tapped lugs for ANSI/DIN/JIS flange compatibility. Key benefits:
- Bi-Directional Zero Leakage: Double-offset eccentric sealing achieves ISO 5208 Class VI (≤50ppm) at -196°C~600°
- Quick Seat Replacement: Interchangeable EPDM/FKM seats cut maintenance time by 70% vs welded valves.
- Rugged Construction: 17-4PH stainless stem with anti-blowout groove withstands 10,000+ cycles @ 600LB.
- API 609 Fire-Safe: Secondary metal seal activates post-750°C fire exposure.
- ISO 15848-1 Compliance: Live-loaded graphite packing ensures ≤50ppm fugitive emissions. Ideal for chemical plants, HVAC, and water treatment pipelines.
| Size Range | 2″-40″(50mm-1000mm) | Body Material | Carbon Steel,Stainless Steel，Nickel Aluminum Bronze,alloy steel,etc |
| Temperature Range | -196 to 600 degree | Stem Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 900,PN 2.5 to PN150,10K-20K | Body Style | Lug |
| Design Standard | ASME B16.34, Â API 609 | Flange Standard | ASME B16.5,
EN 1092,GOST 33259 |
| Testing Standard | API598,EN12266-1,
ISO 5208 |
Certifications | CE,EAC,SIL3,API 607,API 609,
ISO 19001 |
| Face to Face | API 609,ISO 5752,
MSSÂ SP-68, ASME B16.10,EN558-1 |
Fugitive Emissions | ISO 158484-1 |

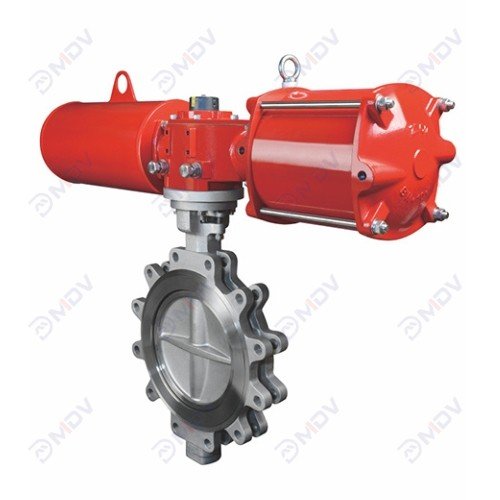

| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | soft seat ,metal seat,
full metal seat |
| Shutoff Rating | Zero Leakage | Disc Materials | Stainless Steel,Nickel Aluminum Bronze,alloy steel,Carbon
Steel,etc |
