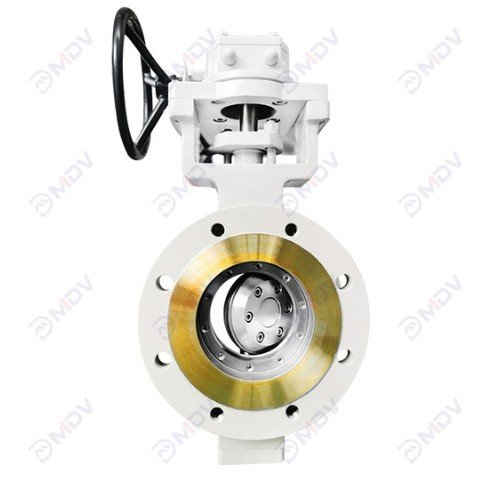

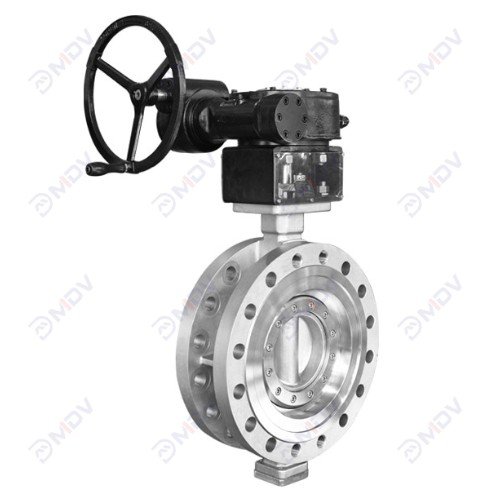

Metal Seated Butterfly Valve Collection
- Abrasion-resistant seats
- High-temperature endurance
- Fire-safe API607
- Zero leakage
- Bi-directional flow
- Low torque operation
- Long service life
- ANSI/PN compliance
- Minimal maintenance
- Full bore design
Main functions and technical parameters of the product

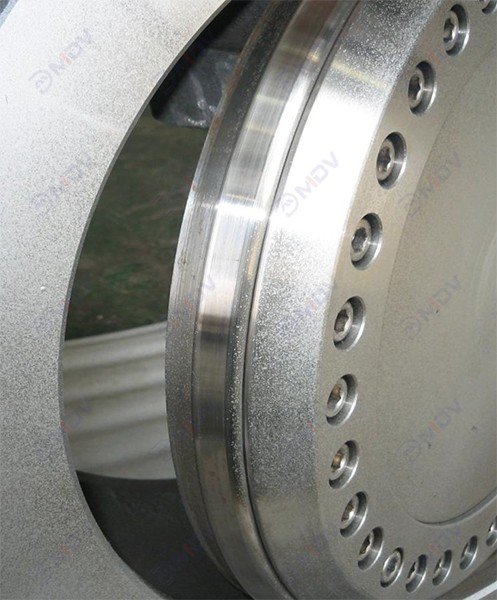

MeiDe Valve producesMetal Seated Butterfly Valve triple-eccentric design ensures bi-directional zero leakage (ISO 5208 Class VI ≤10ppm) with full-metal Stellite 6 sealing surfaces. Key benefits:
- API 607 Fire-Safe: Withstands 800°C flames, maintaining ANSI Class IV sealing post-fire.
- Extreme Condition Resilience: -196°C~650°C range with 3mm Stellite 6 laser-clad overlay for slurry/erosion resistance.
- Low-Torque Operation: 30% reduced actuation force via optimized 8° conical seat geometry.
- One-Piece ASTM WCB Body: Replaces gate/ball valves in ANSI 150-600LB systems.
- ISO 15848-1 Stem Sealing: Live-loaded packing ensures ≤50ppm emissions. Ideal for refining, cryogenic, and power generation pipelines.
| Size Range | 2″-40″(50mm-1000mm) | Body Material | Carbon Steel,Stainless Steel，Nickel Aluminum Bronze,alloy steel,etc |
| Temperature Range | -196 to 650 degree | Stem Material | Staniless Steel |
| Pressure Ratings | PN 2.5 to PN150,Class 150 to Class 900,10K-20K | Body Style | Flange |
| Design Standard | ASME B16.34, Â API 609 | Flange Standard | ASME B16.5,
EN 1092,GOST 33259 |
| Testing Standard | API598,EN12266-1,
ISO 5208 |
Certifications | API 609,CE,EAC,SIL3,API 607,
ISO 19001 |
| Face to Face | API 609,ISO 5752,
MSSÂ SP-68, ASME B16.10,EN558-1 |
Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | metal seat,soft seat ,
full metal seat |
| Shutoff Rating | Zero Leakage | Disc Materials | Stainless Steel,Carbon Steel,
Nickel Aluminum Bronze,alloy steel,etc |
