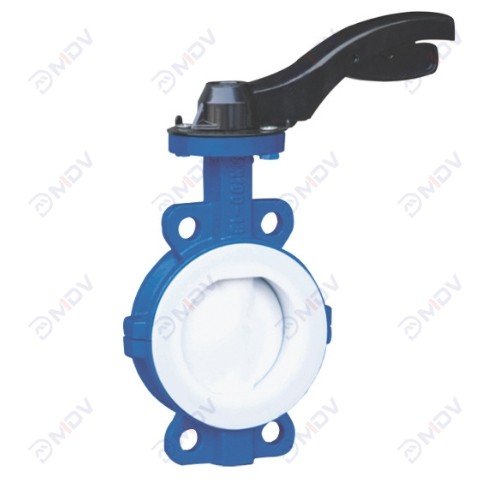

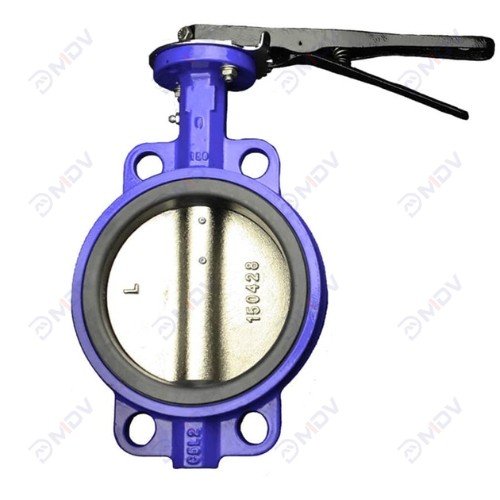

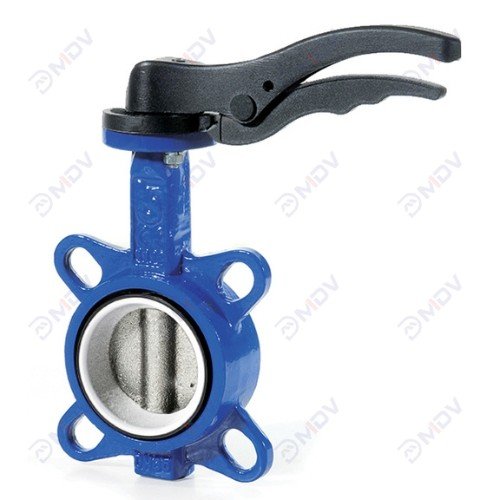

Wafer Butterfly Valve Collection
- Space-saving design
- Bidirectional sealing
- Fire-safe API607
- Low-pressure drop
- EPDM/Viton seats
- Stainless steel disc
- Easy maintenance
- ANSI/PN standards
- High cycle life
- Cost-efficient
Main functions and technical parameters of the product
MeiDe Valve producesWafer Butterfly Valve wafer design ensures zero bi-directional leakage (ISO 5208 Class VI) with dual-offset eccentric sealing. Key advantages:
- Multi-Flange Fit: ANSI/DIN/JIS/GOST compatibility eliminates adapter needs.
- Interchangeable Seats: Replace EPDM/FKM seats in 30min, extending lifespan 5x vs welded types.
- ISO 15848-1 Stem Packing: Graphite/316SS composite guarantees ≤50ppm emissions (-196°C~600°C).
- Anti-Blowout Stem: 17-4PH steel with retention groove withstands 10,000+ cycles @ 600LB.
- Compact & Lightweight: 50% thinner profile vs lug-type valves (DN50-DN1200). API 609 fire-safe certified for HVAC, chemical, and marine pipelines.
| Size Range | 2″-40″(50mm-1000mm) | Body Material | Carbon Steel,Stainless Steel，Nickel Aluminum Bronze,alloy steel,etc |
| Temperature Range | -196 to 600 degree | Stem Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 900,PN 2.5 to PN150,10K-20K | Body Style | Wafer |
| Design Standard | ASME B16.34, Â API 609 | Flange Standard | ASME B16.5,
EN 1092,GOST 33259 |
| Testing Standard | API598,EN12266-1,
ISO 5208 |
Certifications | API 609,CE,EAC,SIL3,API 607,
ISO 19001 |
| Face to Face | ISO 5752,API 609,
MSSÂ SP-68, ASME B16.10,EN558-1 |
Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | metal seat,soft seat ,
full metal seat |
