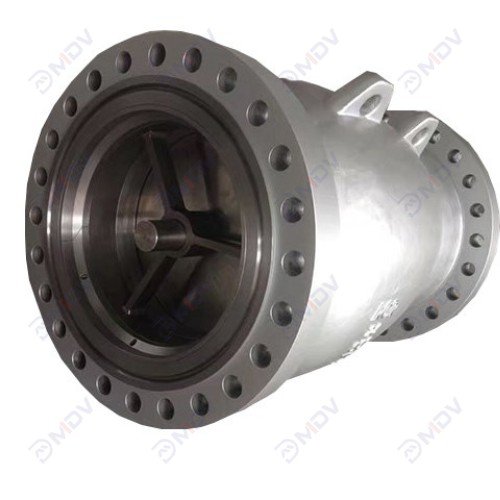

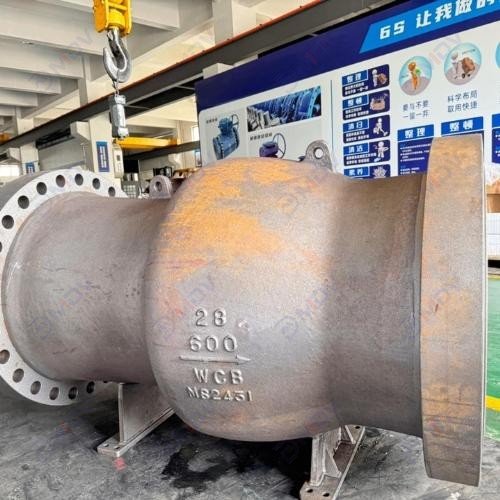

Axial Flow Check Valve Collection
- Spring-assisted closure
- Non-slam performance
- Low-pressure drop
- Compact inline design
- Metal/soft seats
- High flow capacity
- ANSI/ASME compliance
- Maintenance-free
- Corrosion-resistant
- Fast response
Main functions and technical parameters of the product
MeiDe Valve produces Axial flow check valve ASME 2500-certified design eliminates water hammer with spring-assisted closure (0.2s). Key benefits:
- Ultra-High Flow: Cv 450+ at DN500 (50% higher ΔP efficiency vs swing checks).
- Zero Noise: <65dB(A) operation via streamlined disc guidance (ASME B16.34).
- Corrosion Resistance: Duplex 2205/NACE MR0175 trim for Hâ‚‚S/sour gas (API 6D).
- Full Range Sizing: NPS 2″-60″ (DN50-DN1500) with RF/BW/RTJ connections.
- Rugged Construction: -46°C~550°C operation, 10+ year maintenance-free lifespan. Ideal for LNG, refining, and high-flow pipelines.
| Size Range | 2″-48″(50mm-1200mm) | Body Material | Carbon Steel,Stainless Steel，Nickel Aluminum Bronze,alloy steel,etc |
| Temperature Range | -46to 550 degree | Pin Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 2500,PN 2.5 to PN420,10K-20K | Body Style | Double Flanged,Butt Weld |
| Design Standard | API 594,ASME B16.34,
API 6D |
Flange Standard | ASME B16.5, EN 1092-1,
GOST 33259 |
| Testing Standard | EN12266-1,API598,
ISO 5208 |
Certifications | CE,EAC,SIL3,API 607,
ISO 19001,API 6D |
| Face to Face | API 6D,ISO 5752,
ASME B16.10,EN558-1 |
Disc Materials | Carbon Steel,Stainless Steel,
Nickel Aluminum Bronze,alloy steel,etc |
| Shutoff Rating | Zero Leakage | Seat Material | Trim Material is Metal to Metal acc to API 600
soft seat(EPDM,NBR,VITON,PTFE) |
