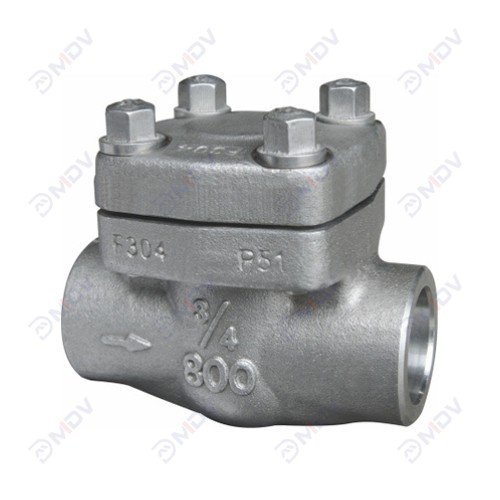

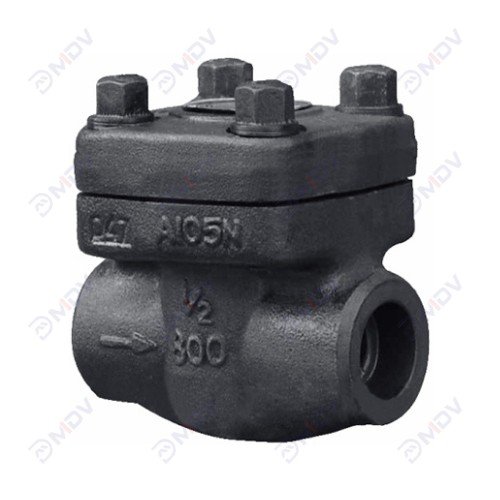

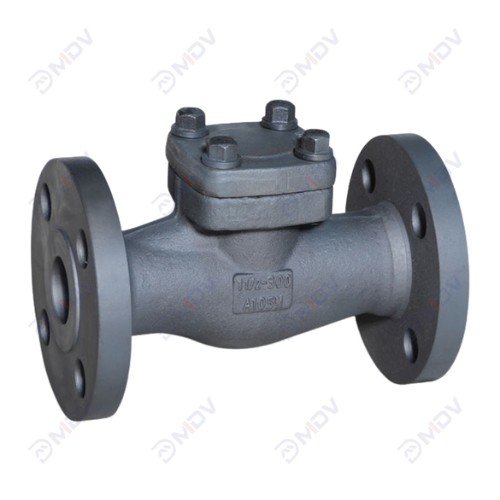

Forged Steel Check Valve Collection
- High-strength forged body
- API6D compliance
- Full bore design
- Metal-to-metal seal
- Fire-safe API6FA
- Low-pressure drop
- Rugged construction
- ANSI class ratings
- Long-term reliability
- Easy maintenance
Main functions and technical parameters of the product
MeiDe Valve produces Forged Steel check valve ensures zero backflow with rapid closure (<0.3s) in high-pressure systems. Key benefits:
- High-Temp/High-Pressure: Operates at -46°C~538°C (-50°F~1000°F) up to Class 4500.
- Robust Construction: ASTM A105/A182 F316L bodies resist corrosion/erosion (NACE MR0175).
- Dual Designs: Swing (EPDM seat) for water / Lift (metal-sealed) for steam/oil.
- Anti-Slam: Spring-assisted lift disc prevents water hammer (API 594 tested).
- Longevity: 1M+ cycles (ISO 5208). Ideal for refineries, power plants, and chemical pipelines.
| Size Range | 2″-36″(50mm-900mm)) | Body Material | Forged Steel |
| Temperature Range | -46 to 538 degree | Pin Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 2500,PN 2.5 to PN420,10K-20K | Body Style | Double Flanged,Butt Weld, |
| Design Standard | ASME B16.34, BS 1868,API 6D,APIÂ 594 | Flange Standard | EN 1092-1,ASME B16.5,
GOST 33259,ASME B16.47 |
| Testing Standard | EN12266-1,API598,
ISO 5208 |
Certifications | SIL3,API 6FA,CE,EAC,
ISO 19001,API 6D |
| Face to Face | ASME B16.10,EN558-1,
API 6D |
Disc Materials | Carbon Steel,Stainless Steel,
Nickel Aluminum Bronze,alloy steel,etc |
| Shutoff Rating | Zero Leakage | Seat Material | Trim Material is Metal to Metal acc to API 600 |
