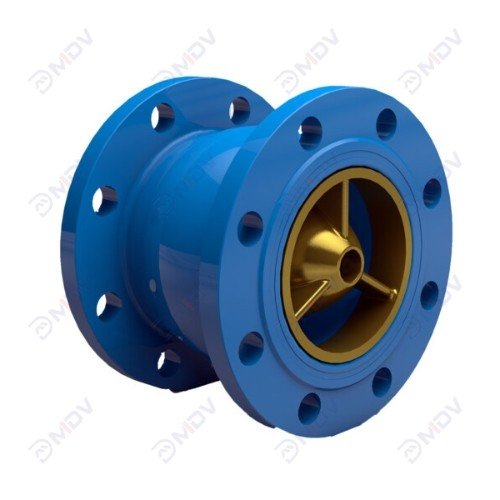

Non Slam Check Valve Collection
- Spring-assisted closure
- Silent operation
- Zero water hammer
- Full bore flow
- ANSI/PN standards
- High flow efficiency
- Compact design
- Corrosion-resistant
- Low-pressure drop
- Maintenance-free
Main functions and technical parameters of the product
MeiDe Valve produces Non Slam Check Valves API 6D-certified design eliminates water hammer with guided hydraulic closure (0.5s shutdown). Key benefits:
- Venturi Flow Path: 30% lower ΔP and 40% turbulence reduction for ANSI 150-2500# systems.
- Zero Impact Closure: Floating disc auto-aligns to 0.5mm misalignment, ensuring ≤2ppm leakage (ANSI Class VI).
- Erosion Resistance: 5mm tungsten carbide-lined throat withstands 60% solid slurries (-46°C~425°C).
- Omni-Directional: 360° installation flexibility (ASME B16.34) with 1M+ cycle durability (API 598).
- NACE MR0175 Option: Inconel 625 trim for Hâ‚‚S environments. Ideal for oil/gas, refining, and power pipelines.
| Size Range | 2″-48″(50mm-1200mm) | Body Material | Carbon Steel,Stainless Steel，Nickel Aluminum Bronze,alloy steel,etc |
| Temperature Range | -46to 425 degree | Pin Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 2500,PN 2.5 to PN420,10K-20K | Body Style | Double Flanged,Butt Weld |
| Design Standard | API 594,ASME B16.34,
API 6D |
Flange Standard | ASME B16.5, EN 1092-1,
GOST 33259 |
| Testing Standard | API598,EN12266-1,
ISO 5208 |
Certifications | SIL3,API 607,CE,EAC,
ISO 19001,API 6D |
| Face to Face | ISO 5752,API 6D,
ASME B16.10,EN558-1 |
Disc Materials | Carbon Steel,Stainless Steel,
Nickel Aluminum Bronze,alloy steel,etc |
| Shutoff Rating | Zero Leakage | Seat Material | Trim Material is Metal to Metal acc to API 600
soft seat(EPDM,NBR,VITON,PTFE) |
