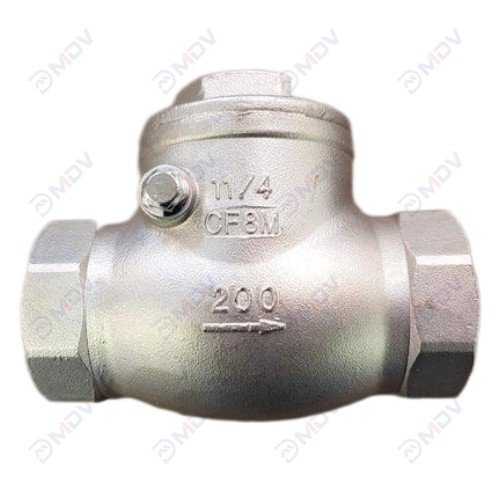

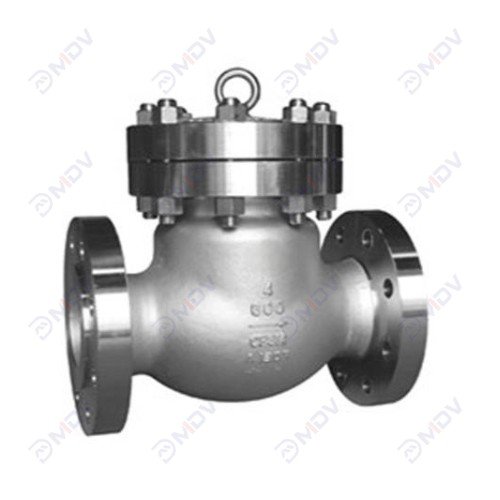

Stainless Steel Check Valve Collection
- Corrosion-resistant SS316
- Hygienic design
- Non-slam closure
- Full port flow
- Fire-safe API607
- Low maintenance
- ANSI flange ends
- High-pressure rating
- Long service life
- CIP compatible
Main functions and technical parameters of the product
MeiDe Valve produces stainless steel check valve AISI 316/304 valves offer corrosion-resistant reliability for harsh environments. Key benefits:
- Zero-Leakage Sealing: Hardened Stellite 6/PTFE seats achieve ANSI Class VI (≤2ppm) in chemical/seawater service.
- Quick Closure: Spring-assisted disc shuts in 0.3s, preventing water hammer (API 6D/ASME B16.34).
- Full-Bore Design: 100% flow efficiency with ASME 150-2500# pressure rating (-196°C~600°C).
- Omni-Directional: Horizontal/vertical/angled installation with NACE MR0175 trim for Hâ‚‚S environments.
- Maintenance-Free: 10+ year lifespan in pharma, desalination, and acidic media pipelines.
| Size Range | 2″-36″(50mm-900mm)) | Body Material | Stainless Steel |
| Temperature Range | -196 to 600 degree | Pin Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 2500,PN 2.5 to PN420,10K-20K | Body Style | Double Flanged,Butt Weld, |
| Design Standard | BS1868,API6D,
ASMEB16.34,APIÂ 594 |
Flange Standard | ASME B16.5, EN 1092-1,
GOST 33259,ASME B16.47 |
| Testing Standard | API598,EN12266-1,
ISO 5208 |
Certifications | CE,EAC,SIL3,API 6FA,
ISO 19001,API 6D |
| Face to Face | EN558-1,ASME B16.10,
API 6D |
Disc Materials | Staniless Steel |
| Shutoff Rating | Zero Leakage | Seat Material | Trim Material is Metal to Metal acc to API 600 |
