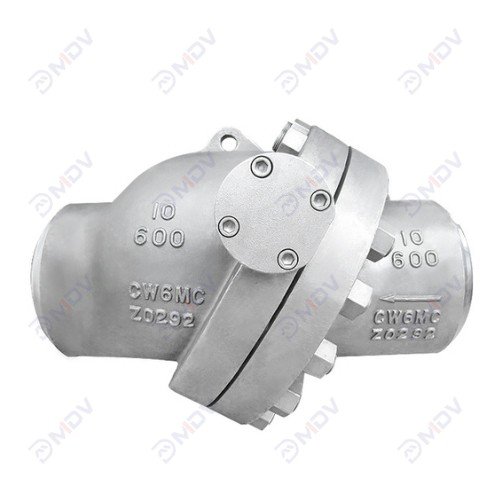

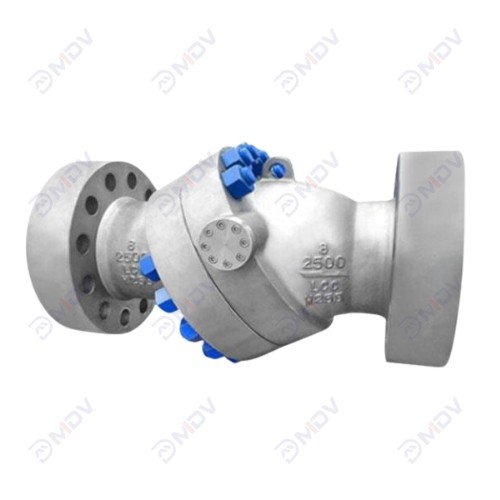

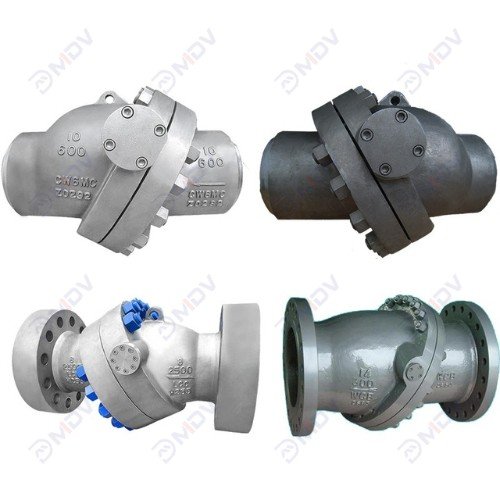

Tilting Disc Check Valve Collection
- Quick closure action
- Non-slam design
- Low-pressure loss
- High flow capacity
- ANSI/ASME compliance
- Metal seat options
- Horizontal installation
- Durable hinge pin
- Fire-safe API6FA
- Long service life
Main functions and technical parameters of the product
MeiDe Valve produces Tilting Disc Check Valves API 6D-certified design ensures zero water hammer with hydraulic-damped closure (0.3s). Key benefits:
- Anti-Erosion Tilted Disc: 8° angled Stellite 6 overlay (HRC 68) reduces seal wear by 70% in turbulent flows.
- Low-Pressure Activation: 0.1bar cracking pressure for energy-efficient operation (ASME 150-2500#).
- 360° Installation: Omnidirectional mounting with 1.2mm misalignment tolerance (ANSI Class VI ≤2ppm).
- Extreme Durability: 1M+ cycles (-46°C~550°C) with PTFE/NACE MR0175 options for viscous/H₂S media.
- Compact Flow Design: 98% bore utilization minimizes Δ Ideal for oil/gas, chemical, and power pipelines.
| Size Range | 2″-24″(50mm-600mm) | Body Material | Carbon Steel,Stainless Steel，Nickel Aluminum Bronze,alloy steel,etc |
| Temperature Range | -46to 550 degree | Pin Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 2500,PN 2.5 to PN420,10K-20K | Body Style | Flange,Butt Welded,Wafer |
| Design Standard | API 594,ASME B16.34,
API 6D |
Flange Standard | EN 1092,ASME B16.5,
GOST 33259,ASME B16.47 |
| Testing Standard | API598,EN12266-1,
ISO 5208 |
Certifications | API 6D,CE,EAC,SIL3,API 6FA,
ISO 19001 |
| Face to Face | ASME B16.10,EN558-1 | Disc Materials | Carbon Steel,Stainless Steel,
Nickel Aluminum Bronze,alloy steel,etc |
| Shutoff Rating | Zero Leakage | Seat Material | Trim Material is Metal to Metal acc to API 600 |
