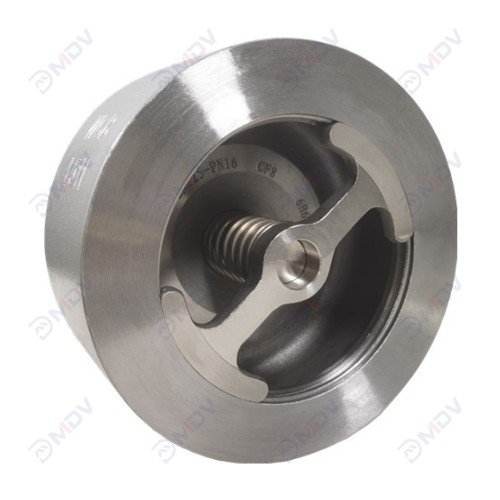

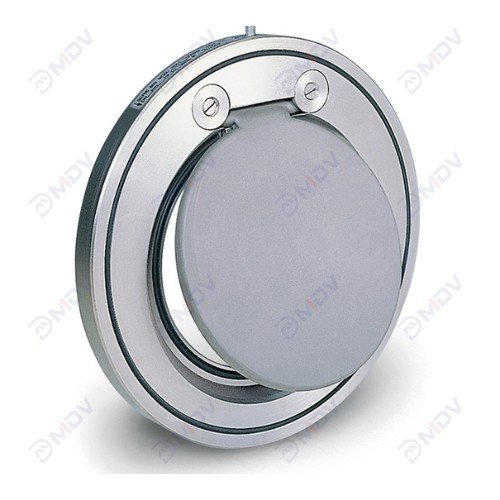

  • Wafer Check Valve
  • Wafer Check Valve-1
  • Wafer Check Valve-2
  • Wafer Check Valve
  • Wafer Check Valve-1
  • Wafer Check Valve-2

Wafer Check Valve Collection

  • Compact wafer design

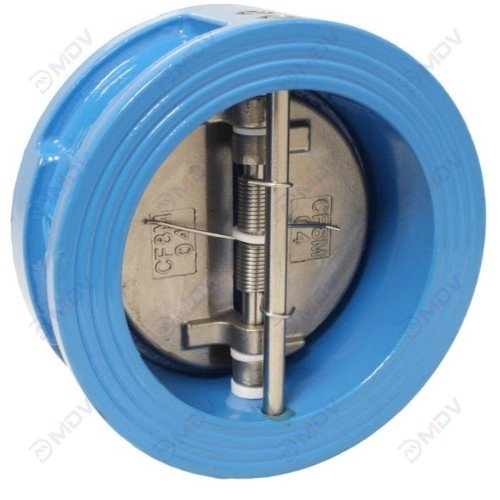

  • Dual-plate construction
  • Low-pressure loss
  • ANSI/PN standards
  • Non-slam operation
  • Bubble-tight sealing
  • Easy installation
  • High cycle life
  • Corrosion-resistant
  • Cost-effective
Send Inquiry Now

Main functions and technical parameters of the product

MeiDe Valve produces wafer check valve API 594-certified dual-plate design ensures zero fugitive emissions with a retainerless structure (no threaded body penetrations). Key benefits:

  • Fire-Safe Performance: Metal-to-metal sealing post-1000°F exposure (API 607 compliant).
  • Ultra-Compact: 85% lighter vs swing checks, fits all flange types (ASME 150-2500LB).
  • Low Cracking Pressure: ≤5psi ensures smooth flow with 30% lower ΔP.
  • Omni-Directional: Horizontal/vertical installation with spring-loaded discs.
  • ISO 15848-1 Seals: ≤50ppm emissions, ideal for oil/gas/chemical pipelines. Optional NACE MR0175 trim for sour service.
Size Range 2″-36″(50mm-900mm)) Body Material Carbon Steel,Stainless Steel，Nickel Aluminum Bronze,alloy steel,etc
Temperature Range -196 to 600 degree Pin Material Staniless Steel
Pressure Ratings Class 150 to Class 2500,PN 2.5 to PN420,10K-20K Body Style Wafer
Design Standard ASME B16.34, BS 1868,API 6D,API 594 Flange Standard EN 1092-1,ASME B16.5,

GOST 33259,ASME B16.47
Testing Standard EN12266-1,API598,

ISO 5208

 Certifications CE,EAC,SIL3,API 6FA,

ISO 19001,API 6D
Face to Face ASME B16.10,EN558-1,

API 6D

 Disc Materials Carbon Steel,Stainless Steel,

Nickel Aluminum Bronze,alloy steel,etc
Shutoff Rating Zero Leakage Seat Material Trim Material is Metal to Metal acc to API 600
