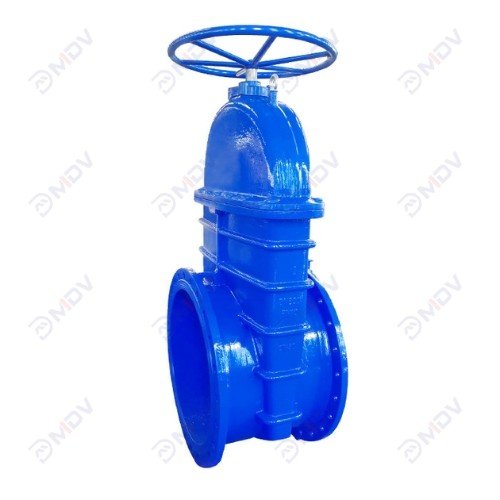

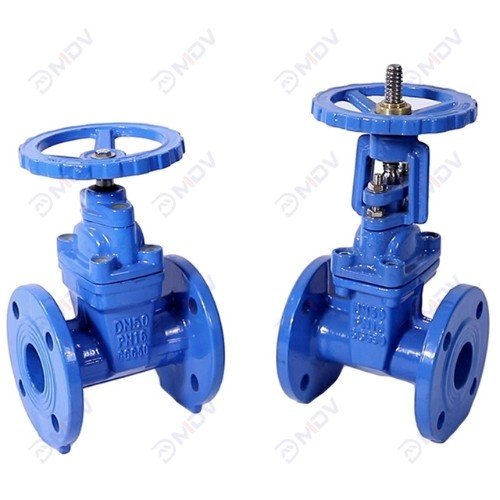

Resilient Seated Gate Valve Collection
- EPDM/NBR seats
- Bubble-tight seal
- Low torque operation
- ANSI standards
- Non-rising stem
- Compact design
- Corrosion-resistant
- Easy maintenance
- Cost-effective
- Long cycle life
Main functions and technical parameters of the product
MeiDe Valve produces Resilient Seated Gate Valve ensures zero leakage (≤2ppm per ISO 5208) with EPDM-coated elastic gate for bidirectional sealing. Key benefits:
- Debris Tolerance: 8mm EPDM layer absorbs ≤6mm particles, auto-cleaning during operation.
- Corrosion Resistance: 250μm electrostatic epoxy coating (ISO 12944 C5-M) protects against chemicals/saltwater.
- Non-Directional Installation: Bidirectional pressure rating (PN25) eliminates flow restrictions.
- Flat-Bottom Seat Design: Prevents debris buildup, reducing 90% maintenance.
- WRAS/NSF 61 Certified: Safe for potable water systems. Ideal for wastewater, mining slurries, and HVAC pipelines.
| Size Range | 2″-48″(50mm-1200mm) | Body Material | Cast Iron, Ductile Iron, Carbon Steel,Stainless Steel,
Nickel Aluminum Bronze,etc |
| Temperature Range | -29 to 80 degree | Stem Material | Staniless Steel |
| Pressure Ratings | Class 125,PN 2.5 to PN16 | Shutoff Rating | Zero Leakage |
| Disc Materials | Cast Iron,
Ductile Iron, Carbon Steel, StainlessSteel,Nickel Aluminum Bronze,etc |
Body Style | Â Flanged |
| Design Standard | BS5163,DIN3352-F4, EN1171,EN558-1
AWWA C509 |
Flange Standard | ASME B16.1, EN 1092-1,
GOST 33259 |
| Testing Standard | EN12266-1,API 598,
ISO 5208 |
Certifications | CE,EAC,SIL3,API 607,ISO 19001 |
| Face to Face | API 609,ISO 5752,
ASME B16.10,EN558-1 |
Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | EPDM,NBR,etc |
