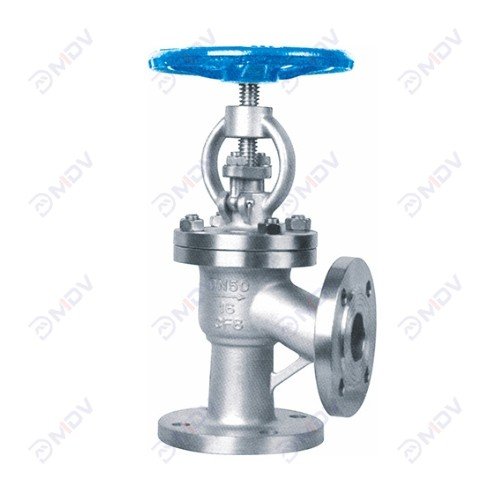

  • Angle Globe Valve

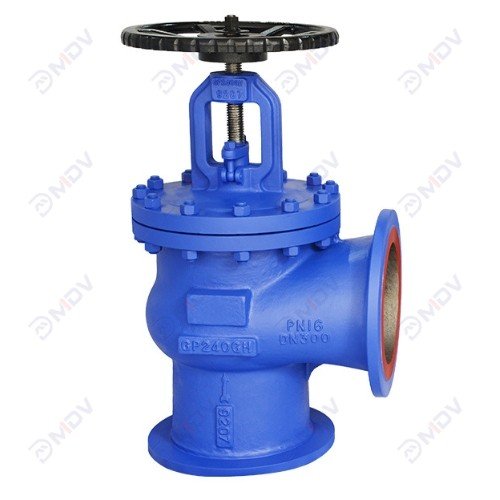

  • Angle Globe Valve-1

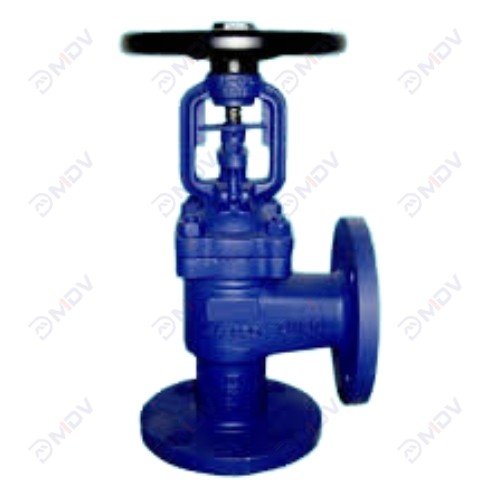

  • Angle Globe Valve-2
  • Angle Globe Valve
  • Angle Globe Valve-1
  • Angle Globe Valve-2

Angle Globe Valve Collection

  • 90-degree flow path
  • Precise flow control
  • High-pressure rating
  • Metal/soft seats
  • ANSI flange ends
  • Rising stem design
  • Fire-safe API607
  • Low leakage
  • Durable construction
  • Easy maintenance

Main functions and technical parameters of the product

MeiDe Valve produces angle globe valves ensures precise flow control with 90° low-pressure drop design (40% lower ΔP). Key benefits:

  • Multi-Disc Options: Cone/needle/parabolic discs for Cv=0.5~500 adjustment (ISA S75.01).
  • ISO 15848 Fe Class A: ≤50ppm emissions with live-loaded graphite/PTFE packing.
  • API 6FA Fire-Safe: Passes 30min@1400°F hydrocarbon fire test.
  • Short-Stroke Actuation: 25% shorter stem travel for 10,000+ cycles/year.
  • Pulsation Resistance: Parabolic disc reduces water hammer in slug flow. Ideal for oil/gas, power plants, and chemical processing.
Size Range 1/2″-24″

(15mm-600mm)

Body Material CarbonSteel,StainlessSteel,Copper Alloy,alloy steel,etc
Temperature Range -196 to 500 degree Stem Material Staniless Steel
Pressure Ratings Class 150 to Class 2500,PN 2.5 to PN420,10K-20K Shutoff Rating Zero Leakage
Disc Materials CarbonSteel,StainlessSteel,CopperAlloy,alloy steel,etc Body Style Double Flanged,Butt Weld,
Design Standard BS1873,ASME B16.34,

DIN3356,API 623

Flange Standard ASME B16.5, EN 1092-1,

GOST 33259,ASME B16.47

Testing Standard API598,EN12266-1,ISO 5208 Certifications CE,EAC,SIL3,API 6FA,

ISO 19001,API 600

Face to Face ASME B16.10,EN558-1 Fugitive Emissions ISO 158484-1
Operation Wench,Worm Gear, Electric, Pneumatic,etc Seat Material Trim Material is Metal to Metal acc to API 600
