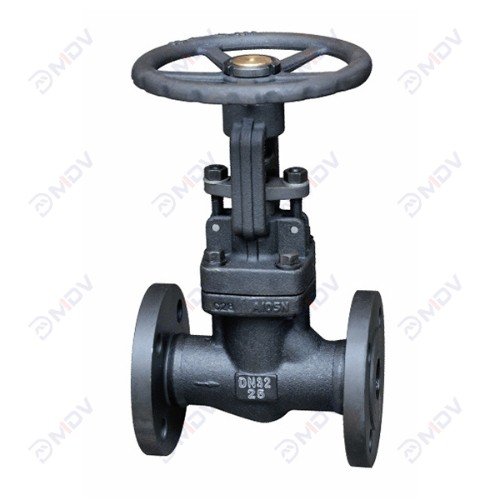

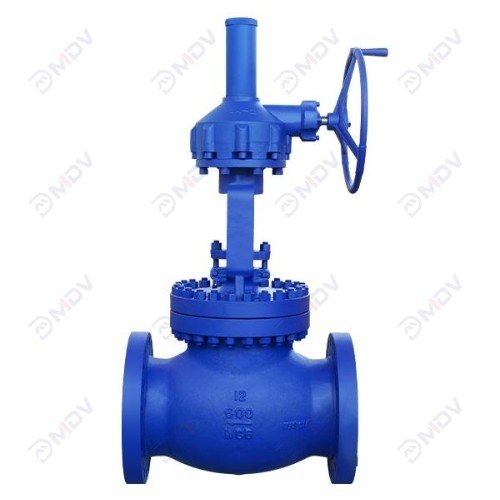

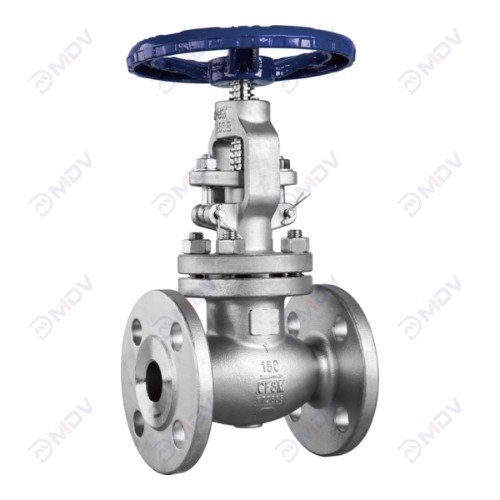

Flanged Globe Valve Collection
- ANSI flange ends
- Precise flow control
- Fire-safe API6FA
- Metal/soft seats
- High-pressure rating
- Rising stem design
- Low leakage
- Durable construction
- Easy maintenance
- Wide applications
Main functions and technical parameters of the product
MeiDe Valve produces flanged globe valves (API 600/ASME B16.34 certified) ensure precise flow control and leak-tight isolation for industrial systems. Key advantages:
- Robust Construction: ASTM A216 WCB/CF8M bodies withstand -196°C~650°C and ASME 150~2500LB pressure.
- Zero Leakage: Metal-to-metal or EPDM/PTFE seals achieve ≤2ppm emissions (ISO 5208 Class IV).
- High-Precision Throttling: Parabolic/needle discs provide ±1% CV accuracy (ISA S75.01).
- Easy Maintenance: Bolted bonnet design allows quick seat replacement (API 600 compliant).
- Corrosion Resistance: NACE MR0175 trim (13Cr/Stellite 6) for Hâ‚‚S/sour gas service.
| Size Range | 1/2″-24″
(15mm-600mm) |
Body Material | CarbonSteel,StainlessSteel,Copper Alloy,alloy steel,etc |
| Temperature Range | -196 to 650Â degree | Stem Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 2500,PN 2.5 to PN420,10K-20K | Shutoff Rating | Zero Leakage |
| Disc Materials | CarbonSteel,StainlessSteel,CopperAlloy,alloy steel,etc | Body Style | Double Flanged |
| Design Standard | BS1873,ASMEÂ B16.34,
DIN3356,API 623 |
Flange Standard | ASME B16.5, EN 1092-1,
GOST 33259,ASME B16.47 |
| Testing Standard | API598,EN12266-1,ISO 5208 | Certifications | CE,EAC,SIL3,API 6FA,
ISO 19001,API 600 |
| Face to Face | ASME B16.10,EN558-1 | Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | Trim Material is Metal to Metal acc to API 600 |
