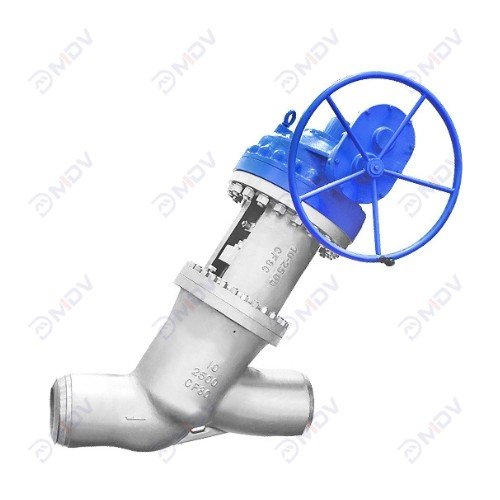

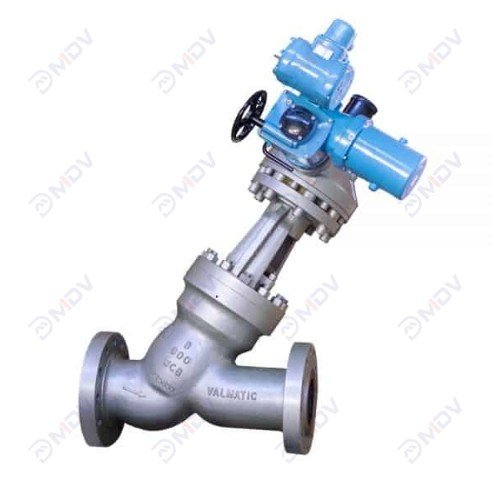

Y Pattern Globe Valve Collection
- Low flow resistance
- High-pressure rating
- Fire-safe API607
- ANSI standards
- Metal/soft seats
- Rising stem
- Precise control
- Compact design
- Corrosion-resistant
- Long cycle life
Main functions and technical parameters of the product
MeiDe Valve produces Y Pattern Globe Valve ensures low-torque operation with a 45° stem design reducing 50% galling risk (ASTM G98). Key benefits:
- API 6FA Fire-Safe: Maintains ANSI Class IV sealing post-1400°F fire.
- Precision Flow Control: Cone/parabolic discs achieve ±1% CV accuracy (ISA S75.01).
- ISO 15848 Fe Class A: ≤50ppm emissions with dual graphite/PTFE packing.
- High-Cycle Durability: 200,000+ cycles (EN 12570) via 17-4PH stem + short stroke.
- Corrosion Resistance: Monel 400 trim (NACE MR0175) for Hâ‚‚S/chemical service. Ideal for petrochemical, LNG, and power plants.
| Size Range | 1/2″-24″
(15mm-600mm) |
Body Material | CarbonSteel,StainlessSteel,Copper Alloy,alloy steel,etc |
| Temperature Range | -196 to 500Â degree | Stem Material | Staniless Steel |
| Pressure Ratings | Class 150 to Class 2500,PN 2.5 to PN420,10K-20K | Shutoff Rating | Zero Leakage |
| Disc Materials | CarbonSteel,StainlessSteel,CopperAlloy,alloy steel,etc | Body Style | Double Flanged,Butt Weld, |
| Design Standard | ASMEÂ B16.34,BS1873,
DIN3356,API 623 |
Flange Standard | EN 1092-1,ASME B16.5,
GOST 33259,ASME B16.47 |
| Testing Standard | API598,EN12266-1,ISO 5208 | Certifications | CE,EAC,SIL3,API 6FA,
ISO 19001,API 600 |
| Face to Face | ASME B16.10,EN558-1 | Fugitive Emissions | ISO 158484-1 |
| Operation | Wench,Worm Gear, Electric, Pneumatic,etc | Seat Material | Trim Material is Metal to Metal acc to API 600 |
